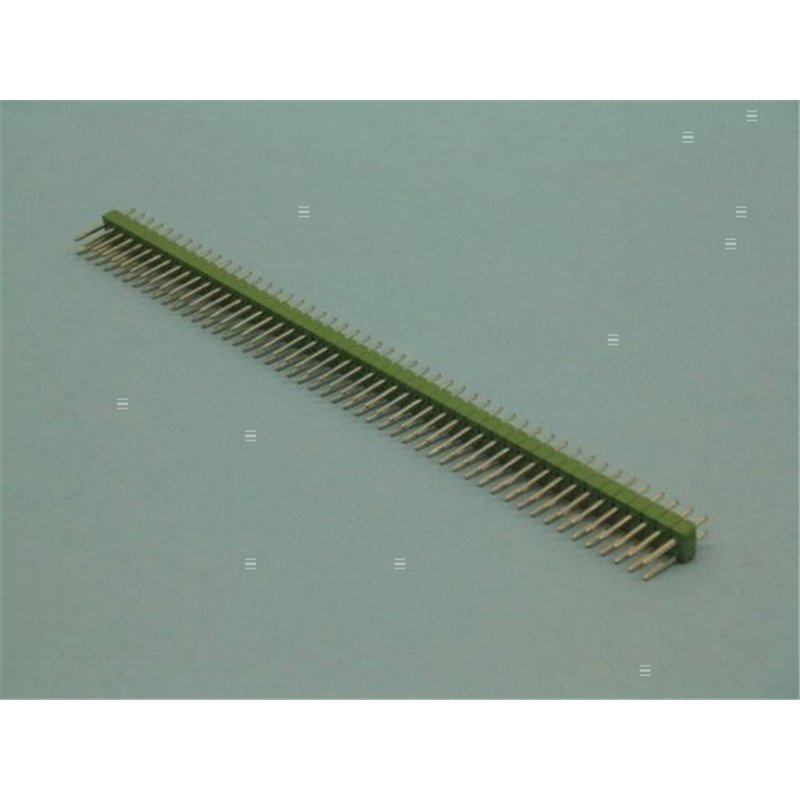

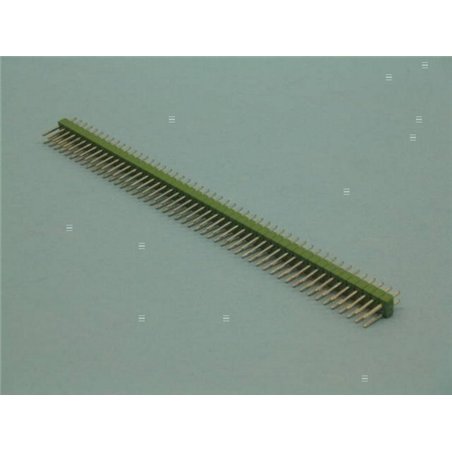

BARRA MODU II 2X50V RECTA ESTAÑADA

RoHS/ELV Compliance: RoHS compliant, ELV compliant Lead Free Solder Process: Wave solder capable to 240°C Header Type: Breakaway Number of Rows: Dual Number of Positions: 100 Profile: Standard Centerline, Matrix (mm [in]): 2.54 [.100] Mount Angle: Vertical Selectively Loaded: No PCB Retention Feature: Without Surface Mount Compatible: No Contact Mating Area Plating: Tin over Nickel Board Standoff: Without Mounting Ears: Without Panel Attachment: No Mating Connector Lock: Without High Temperature Housing: No High Speed Serial Data Connector: No Termination Post Length (mm [in]): 3.20 [0.126] Mount Type: PC Board
