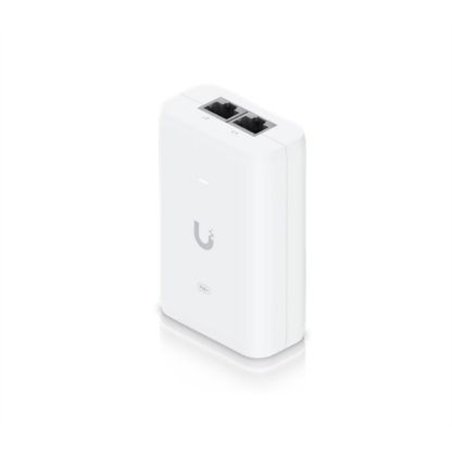

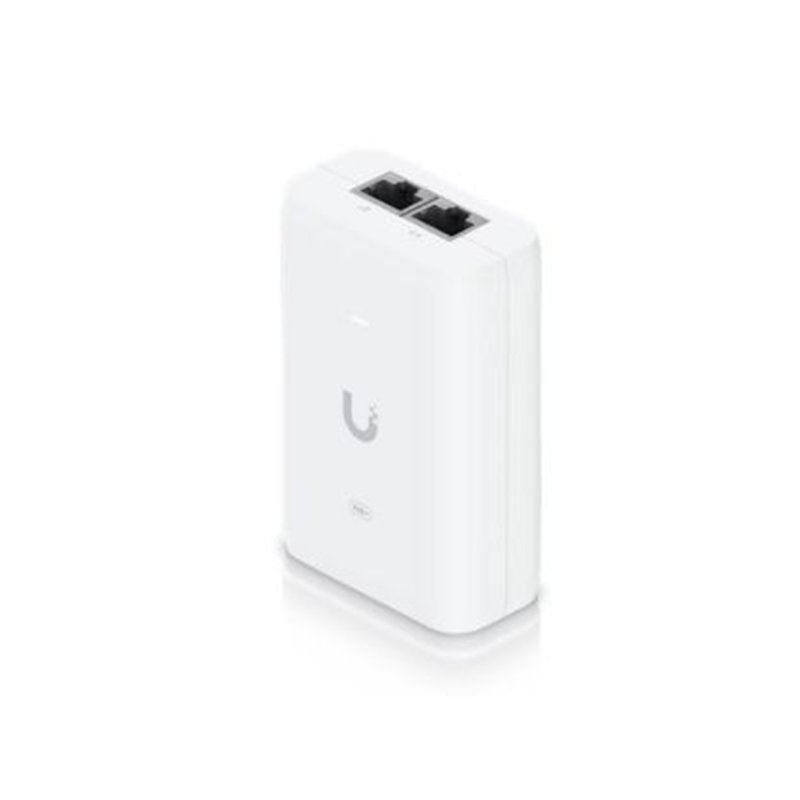

INYECTOR UBIQUITI U POE++ 60W
  • INYECTOR UBIQUITI U POE++ 60W
  • INYECTOR UBIQUITI U POE++ 60W

INYECTOR UBIQUITI U POE++ 60W

5553979
UBIQUITI
INYECTOR UBIQUITI U POE++ 60W
32,89 €
Impuestos incluidos
Cantidad
En stock

  Política de seguridad

(editar con el módulo de Información de seguridad y confianza para el cliente)

  Política de entrega

(editar con el módulo de Información de seguridad y confianza para el cliente)

  Política de devolución

(editar con el módulo de Información de seguridad y confianza para el cliente)

Descripción
Proporciona hasta 60 W de PoE Apto para UA Hub, G4 PTZ y otros dispositivos PoE Protección contra sobretensiones, picos de pulsos y sobrecorriente Contiene entrada de datos RJ45, cable de CA con toma de tierra y salida PoE Indicador LED para monitorizar el estado pecifications Model U-PoE++ Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") Weight 210 g (7.4 oz) Output voltage 48V DC @ 1.25A LAN activity indicator No Gigabit LAN port Yes Remote reset capability No Reset button No Rated voltage 100—240V AC @ 50/60Hz Input current 1.3A @ 120V AC 0.75A @ 230V AC Inrush current <100A peak @ 120V AC <200A peak @ 230V AC Efficiency 85+% Output ripple 1% max. Switching frequency 65 kHz Line regulation = 1% Load regulation = 3% 2-pair powering No 4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) AC connector IEC-320 C6 Data In / PoE RJ45 shielded socket Surge protection Difference and common mode Clamping protection 11V data, 60V power Max. surge discharge 1500A (8/20 µs) power Peak pulse current 36A (10/1000 µs) data Shunt capacitance <5 pF data Response time <1 ns Power method Universal AC input, 100—240V AC, 50/60Hz, (48V@ 1.25A) Power supply AC/DC Supported voltage range 100—240V AC Max. PoE+ wattage per port by PSE 60W Operating temperature 0 to 40° C (32 to 104° F) Storage temperature -30 to 70°C (-22 to 158° F) Operating humidity 10 to 95% noncondensing Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
Detalles del producto
5553979
