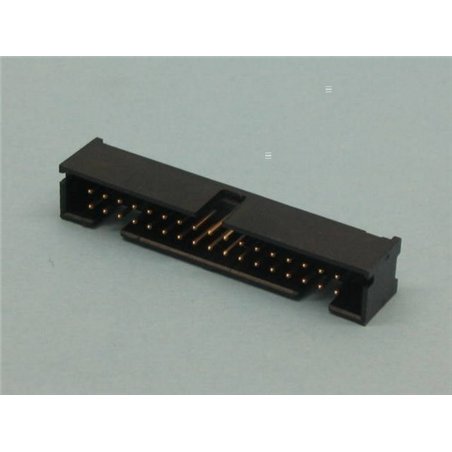

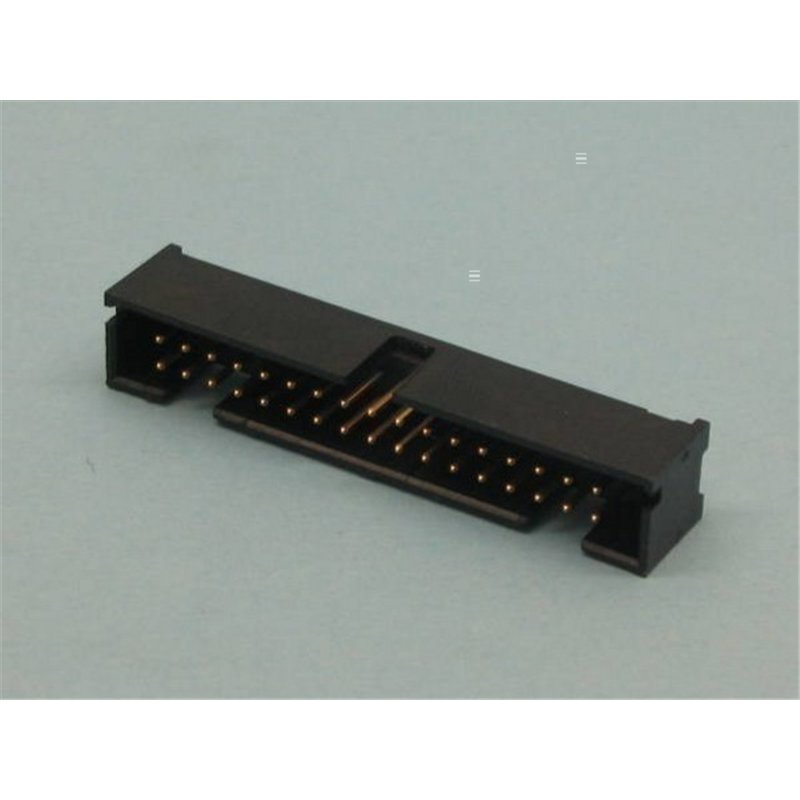

CONECTOR CP 34V M RECTO

RoHS/ELV Compliance: Not ELV/RoHS compliant Lead Free Solder Process: Not suitable for lead free processing Connector Type: Pin Headers Number of Positions: 34 Centerline, Matrix (mm [in]): 2.54 x 2.54 [.100 x .100] PCB Mount Angle: Vertical PCB Retention Feature: Without Mating Polarization Method: Center, Dual Polarizing Bar Termination Post Length (mm [in]): 3.05 [0.120] Mating Connector Lock: Without Housing Style: 4-Sided Ejection Latches: Without Temperature Rating: Standard Contact Mating Area Plating: Gold (15) Other Properties: Post Size (mm [in]): 0.64 [.025] Contact Shape: Square Daisy Chain: With Profile: Low Shrouded: Yes Mating Polarization: Yes Housing Material: Thermoplastic Housing Flammability Rating: UL 94V-0 Housing Color: Black Contact Material: Copper Alloy Contact Termination Area Plating: Tin-Lead Shrouded End Dimension (mm [in]): 3.81 [0.150] Solder Tail Plating: Tin-Lead over Nickel
