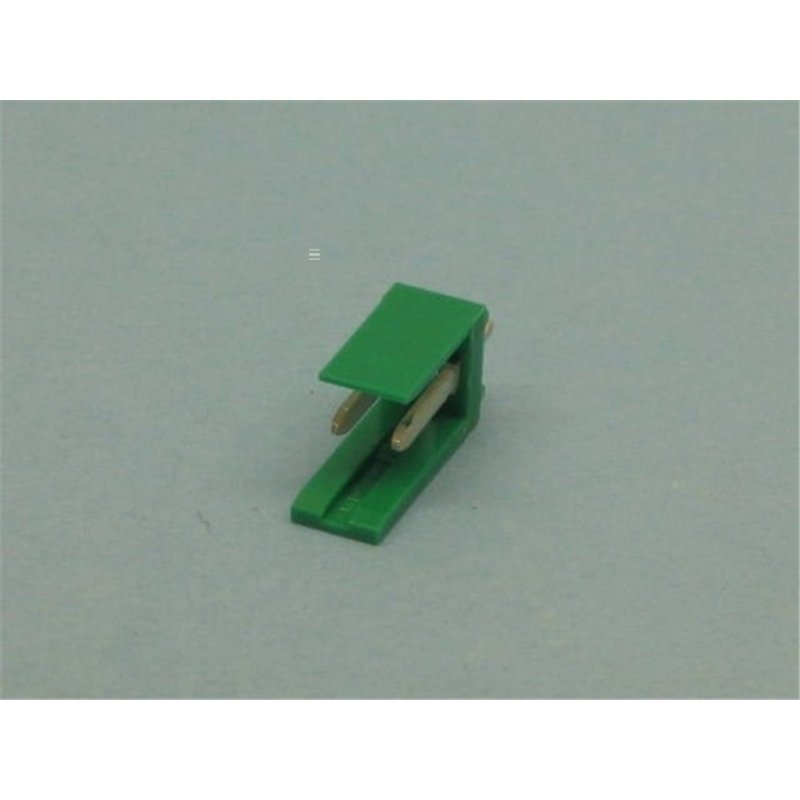

CONECTOR MODU I 2V RECTO

RoHS/ELV Compliance: RoHS compliant, ELV compliant Lead Free Solder Process: Wave solder capable to 240°C, Wave solder capable to 265°C Product Type: Header Terminate To: Printed Circuit Board Mount Angle: Vertical Contact Mating Area Plating: Tin (150) Keyed: No Number of Positions: 2 Mating Post Length (mm [in]): 10.00 [0.394] Other Properties: RoHS/ELV Compliance History: Always was RoHS compliant Termination End Plating: Tin (150) Contact Material: Phosphor Bronze Number of Rows: Single Centerline, Matrix (mm [in]): 3.96 [.156] Housing Material: Polycarbonate Housing Color: Green Housing Flammability Rating: UL 94V-1
