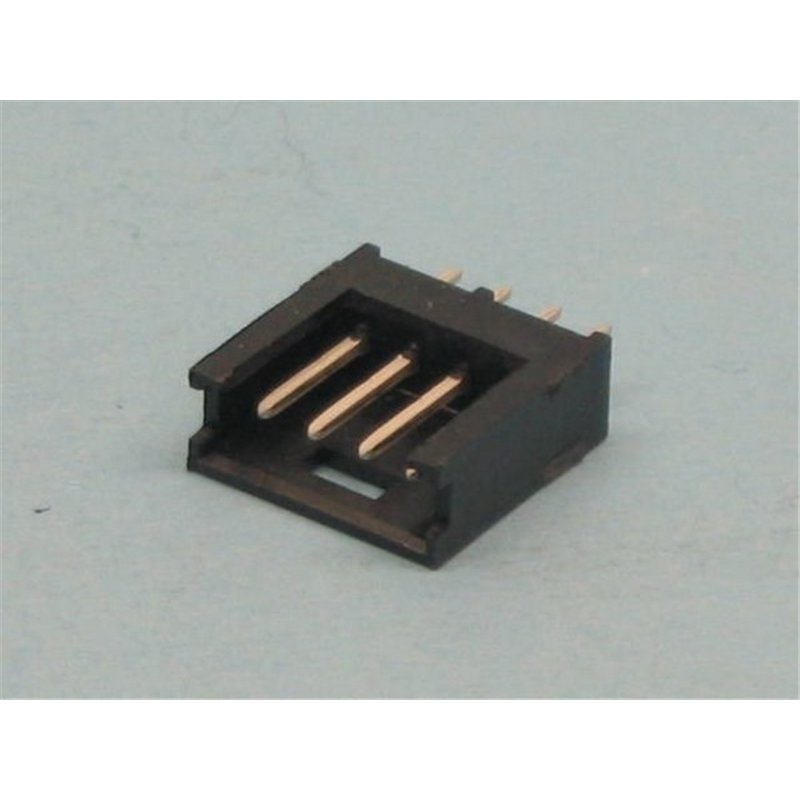

CONECTOR MODU II 4V RECTO

RoHS/ELV Compliance: RoHS compliant, ELV compliant Lead Free Solder Process: Wave solder capable to 240°C, Wave solder capable to 265°C Header Type: Shrouded Number of Rows: Single Number of Positions: 4 Profile: Standard Centerline, Matrix (mm [in]): 2.54 [.100] Mount Angle: Right Angle Selectively Loaded: No PCB Retention Feature: Without Surface Mount Compatible: No Contact Mating Area Plating: Tin Board Standoff: Without Mounting Ears: Without Panel Attachment: No Mating Connector Lock: With Mating Connector Lock Type: Detent Windows High Temperature Housing: No Housing Style: 3-Sided High Speed Serial Data Connector: No Termination Post Length (mm [in]): 3.50 [0.138] Mount Type: PC Board Other Properties: RoHS/ELV Compliance History: Always was RoHS compliant Contact Material: Phosphor Bronze Housing Material: Glass-Filled Thermoplastic Housing Flammability Rating: UL 94V-0 Packaging Quantity: 1,000
