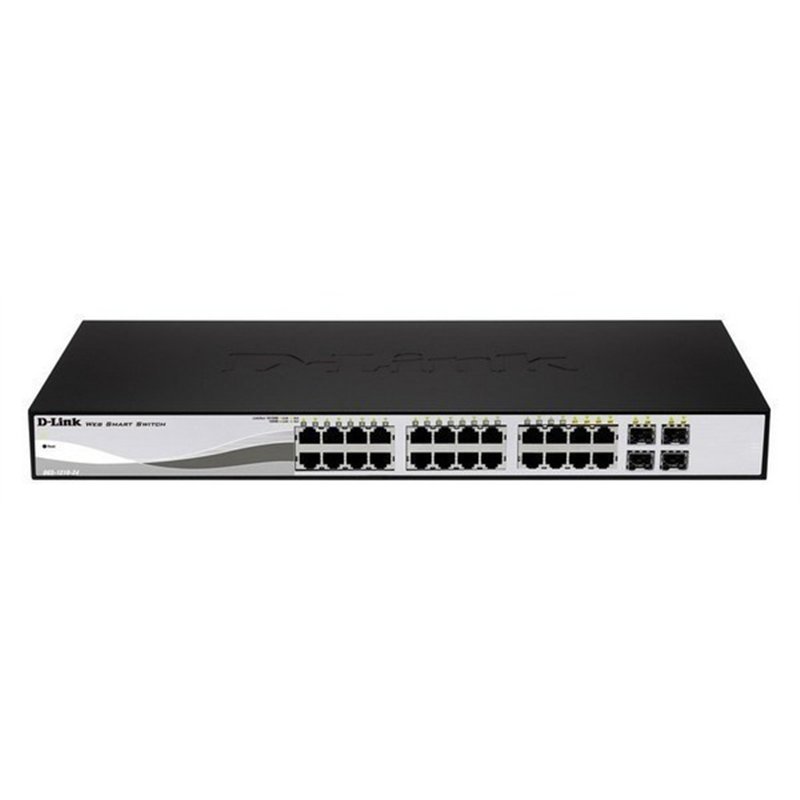

SWITCH 24 PORT DGS 1210 10/100/1000

D-Link presenta su Switch de 24 puertos Gigabit, el modelo DGS-1210-24, que ofrece funciones de gestión y de seguridad avanzadas, y la mejor calidad de servicio. Diseño sin ventilador es ideal para usarlo en oficinas abiertas. Además, gracias a la tecnología Green permite ahorrar la energía. Interface Number of 10/100/1000BASE-TX ports DGS-1210-24 - 24 ports Number of SFP ports Number of Combo 1000Base-T/SFP ports PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget) DGS-1210-24P (802.3af/802.3at/12 ports/85W) Performance Switch Capacity DGS-1210-24 - 56 Gbps 64-Byte Packet Forwarding Rate DGS-1210-24 - 41.7 Mpps MAC Address Table Size 16K Packet Buffer 6 MB per device Jumbo Frame Up to 13,000 Bytes Diagnostic LED Indicators DGS-1210-16, DGS-1210-24, DGS-1210-48 Power (per device) Link/Activity/Speed (per 10/100/1000 Mbps port) Link/Activity/Speed (per SFP port) DGS-1210-08P Power (per device) Link/Activity/Speed/PoE (per 10/100/1000 Mbps port) Link/Activity/Speed (per SFP port) Button to switch LED display mode between PoE and Link/ActivityPower (per device) DGS-1210-24P Power (per device) Fan (per device) Link/Activity/Speed/PoE (per 10/100/1000Base-T port) Link/Activity/Speed (per SFP port) Button to switch LED display mode between PoE and Link/Activity Physical & Environmental Power Consumption (Standby/Maximum) DGS-1210-24 - 3.6W / 17.6W Power Input 10 to 240 VAC, 50/60HZ internal universal power supply Dimensions (W x D x H) DGS-1210-24 - 441 x 209.9 x 44 mm Size 19-inch standard rackmounting width or with rackmountable brackets 1U Height Ventilation DGS-1210-24 - fanless Heat Dissipation DGS-1210-24 - 60 BTU per hour Temperature Operating: -5° to 50°C (23° to 112°F) Storage: -20° to 70°C (-4° to 158°F ) Humidity Operating: 0% ~ 95% non-condensing Storage: 0% ~ 95% non-condensing Certification CE Class A Safety cUL, LVD Software Feature L2 Features MAC Address Table: 16K Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frame up to 13,000 Bytes IGMP Snooping IGMP v1/v2 Snooping IGMP Snooping v3 Awareness Supports 256 IGMP groups Supports at least 64 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier MLD Snooping1 Supports MLD v1/v2 awareness Supports 256 groups Fast Leave Spanning Tree Protocol 802.1D STP 802.1w RSTP Loopback Detection 802.3ad Link Aggregation Port Mirroring One-to-One, Many-to-One Supports Mirroring for Tx/Rx/Both Multicast Filtering Forwards all unregistered groups Filters all unregistered groups LLDP, LLDP-MED VLAN 802.1Q Tagged VLAN VLAN Group Max. 256 static VLAN groups Max. 4094 VIDs Management VLAN Asymmetric VLAN Auto Voice VLAN Max. 10 user-defined OUI Max. 8 default OUI Auto Surveillance VLAN Quality of Service (QoS) 802.1p Quality of Service Queue Handling Strict Weighted Round Robin (WRR) 8 queues per port Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 15 Kb/s) CoS based on 802.1p Priority Queues DSCP
