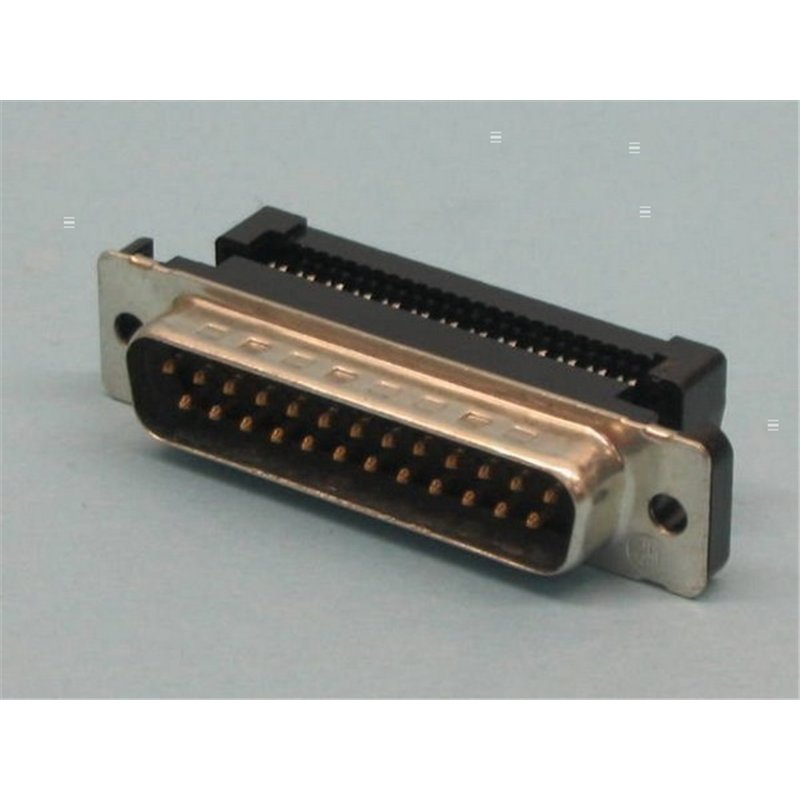

CONECTOR SUBD 25M CP PANCON

RoHS/ELV Compliance: Not ELV/RoHS compliant Lead Free Solder Process: Not relevant for lead free process Product Type: Connector Product Series: HDF-20 (Ribbon Cable) Number of Positions: 25 Gender: Plug Contacts: With Wire/Cable Type: Ribbon Cable Wire Termination Type: Insulation Displacement Crimp (IDC) Wire Range (mm² [AWG]): 0.08 - 0.15 [28-26] Mating Connector Lock: With Mating Connector Lock Type: Mounting Holes Shell Size: 3 Shell Type: Full Metal Shell Contact Mating Area Plating: Gold (30) Contact Termination Area Plating: Tin Lead over Nickel Contact Size: 20 Grounding Indents: With Grade: Standard Other Properties: Profile: Low Ribbon Cable Centerline Spacing (mm [in]): 1.27 [0.050] Contact Material: Phosphor Bronze Color: Black Housing Material: Thermoplastic Housing Material Flammability Rating: UL 94V-0 Shell Material: Steel Shell Plating: Tin Strain Relief Part Number: 747275-2 Cover Material: Thermoplastic Comment: All plug assemblies are supplied with housing and cover preassembled Mass Termination
