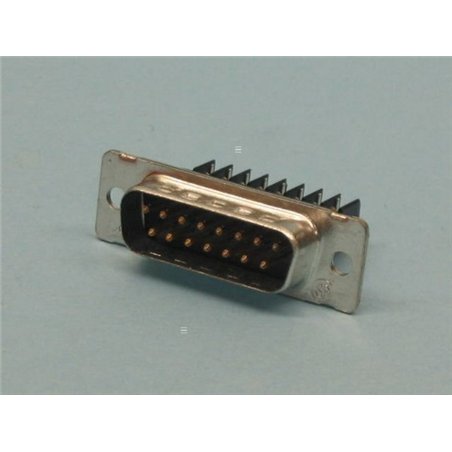

CONECTOR SUBD 15M DES AISL AMP

RoHS/ELV Compliance: Not ELV/RoHS compliant Lead Free Solder Process: Not relevant for lead free process Product Type: Connector Product Series: HDE-20 (IDC) Number of Positions: 15 Gender: Plug Contacts: With Wire/Cable Type: Discrete Wire, Round Jacketed Cable Wire Termination Type: Insulation Displacement Crimp (IDC) Wire Insulation Diameter (mm [in]): 1.52 [0.060] Wire Range (mm² [AWG]): 0.15 - 0.40 [26-22] Mating Connector Lock: With Mating Connector Lock Type: Mounting Holes Shell Size: 2 Shell Type: Full Metal Shell Contact Mating Area Plating: Gold Flash Contact Termination Area Plating: Tin Lead over Nickel Contact Size: 20 Grounding Indents: With Grade: Standard Other Properties: Contact Material: Phosphor Bronze Color: Black Shell Material: Steel Shell Plating: Tin Insert Material: Thermoplastic Insert Flammability Rating: UL 94V-0 Comment: All connectors are preloaded.Individual conductor strands should be larger than 0.13 [.005] diameter. Contacts accept a max. wire insulation thickness of 0.38 [.015]. HDE connectors are designed for terminating solid or stranded (7-strand max.) wire. Connectors can be made available with clinch nuts, contact AMP Incorporated HDE connectors are designed for terminating solid or stranded (7-strand max.) wire. Individual conductor strands should be larger than 0.127 in. [.005] diameter.
